CUSTOMIZED CLEANING
SOLUTIONS

by AX System

by Ax system

Cleaning solutions for process equipment

On-board cleaning ramps

Our custom-designed cleaning systems can be integrated into production equipment. They provide fast, efficient and safe integrated self-cleaning.

Advantages :

Capability: the size of the cleaning solution ensures effective cleaning of the areas to be cleaned
Repeatability: consistent cleaning quality
Safe to work with: our cleaning solutions can be integrated into the equipment, are CE-certified and provide safe cleaning for operators, products and the machine.
Increased uptime: cleaning cycles are shorter than manual interventions, maximising equipment availability.
Efficient cleaning with minimum use of water.
Automated cleaning cycles: cleaning phases can be automated according to equipment cycles.
Continuous or sequential cleaning

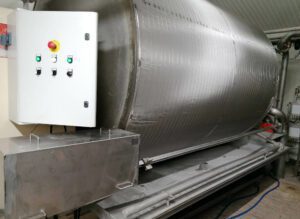

Washing ramp for NIVOBA vacuum rotary filters (food industry)

Rotary filters are designed for clarifying highly contaminated liquids. The principle of operation is to deposit a continuous layer which is then filtered. The deposit is scraped off at the end of the filter revolution.

Our range of mobile ramps on rotary filters provide effective, constant cleaning. Operating flow rate 30L/minute @ Maximum pressure 250barg

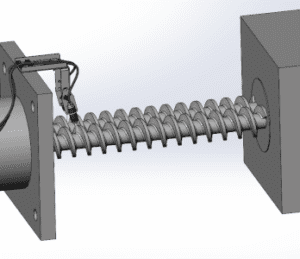

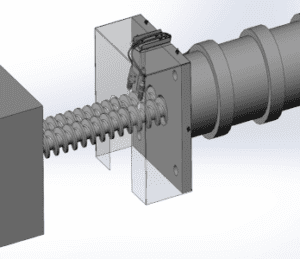

Cleaning solutions for extruder screws

Extrusion is a widely used process in the food industry. Used at high temperatures, this process can generate fouling that is difficult to clean using manual solutions.

Sticky products can be caramel, sugar or glucose, for example. To avoid any risk of foreign bodies appearing during manual cleaning (using metal brushes, for example), we offer high-pressure cleaning ramps for safely stripping screws.

Operating flow rate 50L/minute @ Maximum pressure 1000barg

Washing ramp for conveyor dryers (food industry)

Cleaning solution for conveyor dryers in the food industry. Mobile cleaning ramp. During cleaning phases, the head moves back and forth for effective cleaning while minimising water consumption. The cleaning head is positioned outside the process zone to avoid any contact with the products.
Operating flow 150L/@ Maximum pressure 75barg : watch the video

Automatic cleaning on biowaste shredders

Integrated mobile washing ramp on biowaste shredders.
Operating flow rate 100L/@ Maximum pressure 100barg : watch the video .

On-board cleaning ramps

Our custom-designed cleaning systems can be integrated into production equipment. They provide fast, efficient and safe integrated self-cleaning.

Advantages :

Capability: the size of the cleaning solution ensures effective cleaning of the areas to be cleaned
Repeatability: consistent cleaning quality
Safe to work with: our cleaning solutions can be integrated into the equipment, are CE-certified and provide safe cleaning for operators, products and the machine.
Increased uptime: cleaning cycles are shorter than manual interventions, maximising equipment availability.
Efficient cleaning with minimum use of water.
Automated cleaning cycles: cleaning phases can be automated according to equipment cycles.
Continuous or sequential cleaning

Washing ramp for NIVOBA vacuum rotary filters (food industry)

Our range of mobile ramps on rotary filters provide effective, constant cleaning. Operating flow rate 30L/minute @ Maximum pressure 250barg

Cleaning solutions for extruder screws

Extrusion is a widely used process in the food industry. Used at high temperatures, this process can generate fouling that is difficult to clean using manual solutions.

Operating flow rate 50L/minute @ Maximum pressure 1000barg

Washing ramp for conveyor dryers (food industry)

Automatic cleaning on biowaste shredders

Integrated mobile washing ramp on biowaste shredders.
Operating flow rate 100L/@ Maximum pressure 100barg : watch the video .

Washing ramp
for conveyor
dryer

Automatic cleaning on biowaste shredders

High power
pump unit

A powerful
solution
adapted to
each situation

A unique patented
system at the
service of your ACC

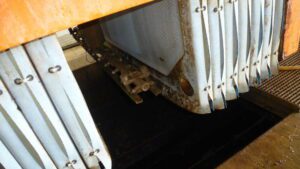

Filter press cleaning

The separation of solids and liquids is a widespread problem in industry, particularly in reprocessing applications. AX System’s experience in this field is invaluable.

Continuous cleaning

Filter presses offer a very large filtration surface in a relatively small footprint. The very principle of the filter press means that the press has to be opened to cl

ear the media.

Gantries

We offer a range of high-pressure gantries for deep cleaning of filter media to maintain a high filtration rate. Our gantries, made entirely of stainless steel, allow automatic cleaning, in hidden time, and integrate perfectly with the existing filter plate handling system. With an AX System filter cleaning gantry, you can optimise the performance of your installation and save precious time.

The separation of solids and liquids is a widespread problem in industry, particularly in reprocessing applications. AX System’s experience in this field is invaluable.

Continuous cleaning

Filter presses offer a very large filtration surface in a relatively small footprint. The very principle of the filter press means that the press has to be opened to clear the media.

Gantries
